Water Pump Troubleshooting | Engine Won’t Start & No Water Output Fix

Water Pump Troubleshooting | Engine Won’t Start & No Water Output Fix

We sunmax offered gasoline water pumps have stable performance, but two malfunctions appear most frequently in real usage: engine fails to start, and the pump cannot pump water.

This troubleshooting guide provides DIY diagnosis steps without professional tools; if simple repairs fail, you can contact our official after-sales service for support.

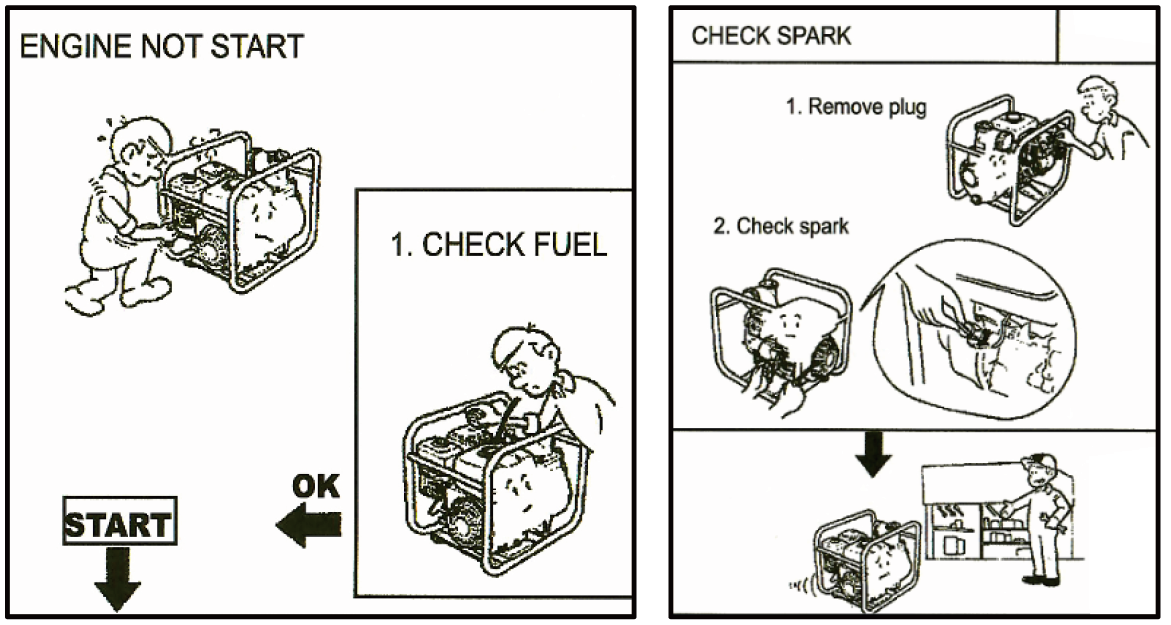

1. Fault 1: Engine Cannot Be Started

Follow the inspection sequence below one by one to locate the root cause:

1. Step 1: Check fuel volume inside the gasoline tank

• Low or empty fuel is the most frequent cause; refill qualified unleaded gasoline if insufficient.

2. Step 2: Test spark plug ignition performance (if fuel is enough)

• Remove the spark plug, place the metal shell against the engine metal frame, pull the recoil starter rope;

• If no blue spark appears, the spark plug is faulty, replace it with a new standard plug (0.7–0.8mm gap).

3. Step 3: Check operation settings

• Confirm fuel cock is open, main power & stop switch are turned to ON, cold startup choke is closed properly.

4. Final solution: If all above checks pass and the engine still cannot ignite, internal engine components may be damaged; contact professional after-sales technicians for overhaul.

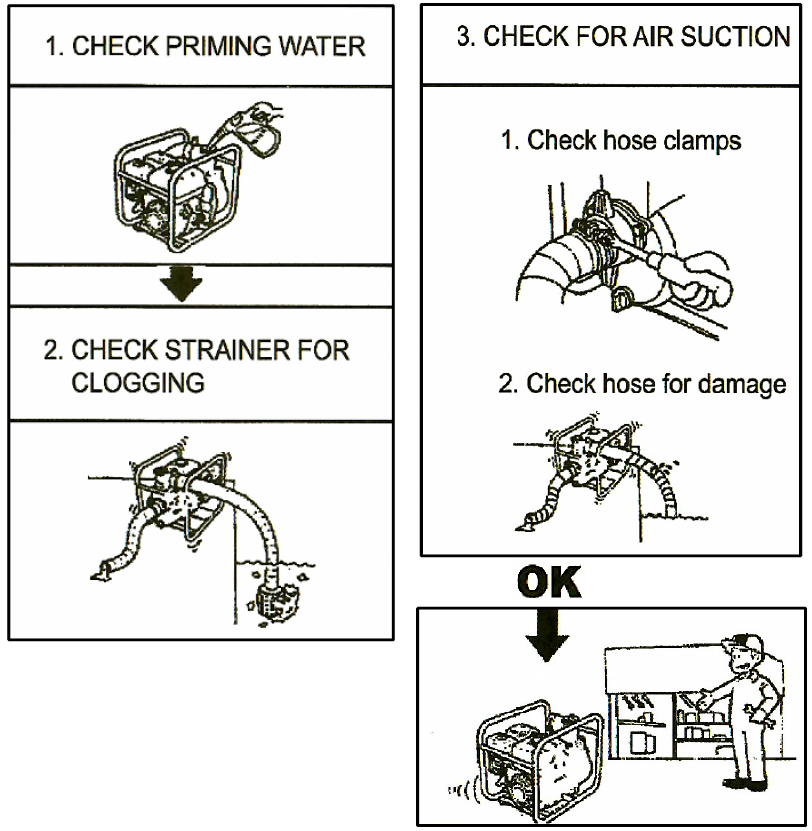

2. Fault 2: Pump Fails to Draw Water / No Water Output

1. Step 1: Check priming water filling status

   The pump will never draw water without full priming water inside the pump cavity. Unscrew the priming plug and refill clean water to full capacity.

2. Step 2: Clean blocked suction strainer foot valve

   Silt, grass and solid debris cover the filter screen and block water inflow; take down the foot valve and rinse the mesh completely.

3. Step 3: Check suction pipeline air leakage (core reason for no water)

   Air entering the suction pipe destroys vacuum self-priming effect, two key inspection points:

• 1).Tighten all loose hose clamps and joint nuts to eliminate gaps;

• 2).Replace cracked, aging, damaged suction hoses that leak air.

4. Extra check: Confirm the foot valve is fully submerged under water surface; if placed too high above water, self-priming height exceeds the standard 8.5m limit of water pumps.

3. Secondary Minor Faults & Quick Fix Tips

1. 1).Low water flow / weak head

   Causes: Clogged impeller, worn mechanical seal, insufficient engine speed.

   Fix: Disassemble pump casing to clean impeller debris; replace leaking mechanical seal; adjust throttle to raise rotating speed.

2. 2).Engine overheating & abnormal noise

   Causes: Insufficient engine oil, blocked air filter, long closed choke valve.

   Fix: Refill SAE10W-30 oil; clean or replace air filter; open choke fully after cold startup.

3. 3).Water leakage from pump body

   Causes: Aging sealing gaskets, damaged mechanical seal, loose priming plug.

   Fix: Replace corresponding gaskets and mechanical seal; retighten all threaded plugs.

4. When to Contact Professional After-Sales Service

1. 1).No ignition after fuel & spark plug replacement;

2. 2).Still no water output after refilling priming water, cleaning filter and replacing suction hose;

3. 3).Severe engine abnormal knocking, oil leakage from crankcase or pump casing cracking;

4. 4).Impeller, inner pump body or engine cylinder damage.
