HAIBO New R Series 48V Brushless Electric Outboard Motor

2026 New HAIBO R Series 48V electric outboard vs old generation, patented brushless motor, 2/3/4kW equals 6/9/13HP gas engine, 17% higher thrust for 4kW model, integrated ECU, fully sealed waterproof, dual control versions for fishing boats, dinghies and small yachts.

Haibo Trolling Motor

HAIBO New R Series Electric Outboard Motor ——Quiet, Zero-Maintenance  Marine Engine

Developed by HAIBO, the upgraded 2026 New R Series electric outboard replaces the old generation. It features patented maintenance-free brushless power unit, 2kW/3kW/4kW power to replace 6HP/9HP/13HP fuel outboards. Two control modes fit all small boats, stable performance in freshwater & saltwater for fishing, cruising and aquaculture. CE & ISO9001 certified.



Key Technical Specifications

Model

Output

Power

 (kW)

Equivalent

Gasoline

 （HP ）

Rated

Voltage

 (V)

Rated

RPM

Max

Thrust

(kg)

Net

Weight

 (kg)

Control

Mode

Max

Speed

(knots)

Applicable Water
R300264818004032Tiller6Freshwater / Saltwater
R400394820005032.5Tiller8Freshwater / Saltwater
R5004134822007033Tiller10Freshwater / Saltwater
R300S264818004032Control box6Freshwater / Saltwater
R400S394820005032.5Control box8Freshwater / Saltwater
R500S4134822007033Control box10Freshwater / Saltwater

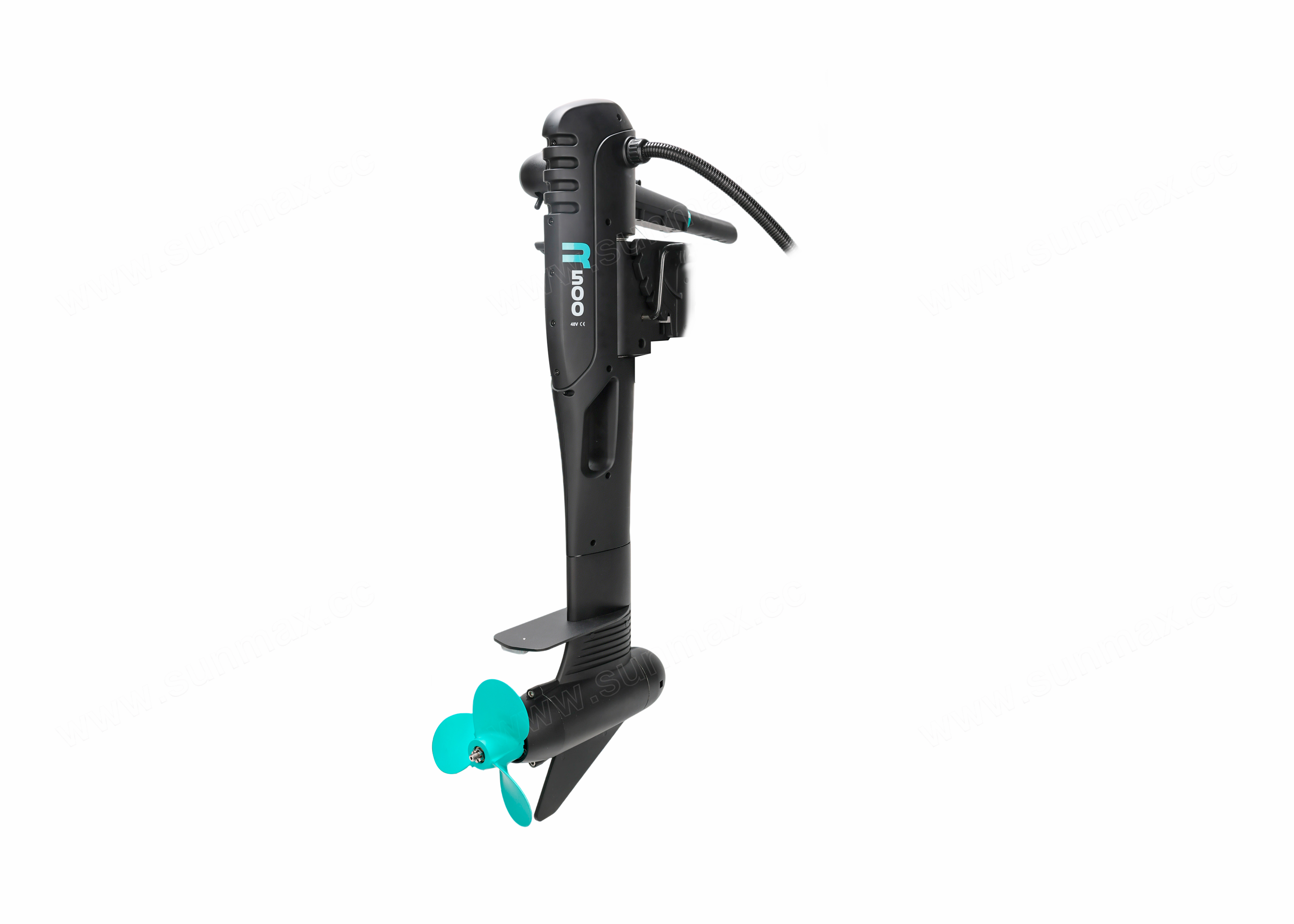

NEW R Series2.jpg


Detailed Feature Introduction

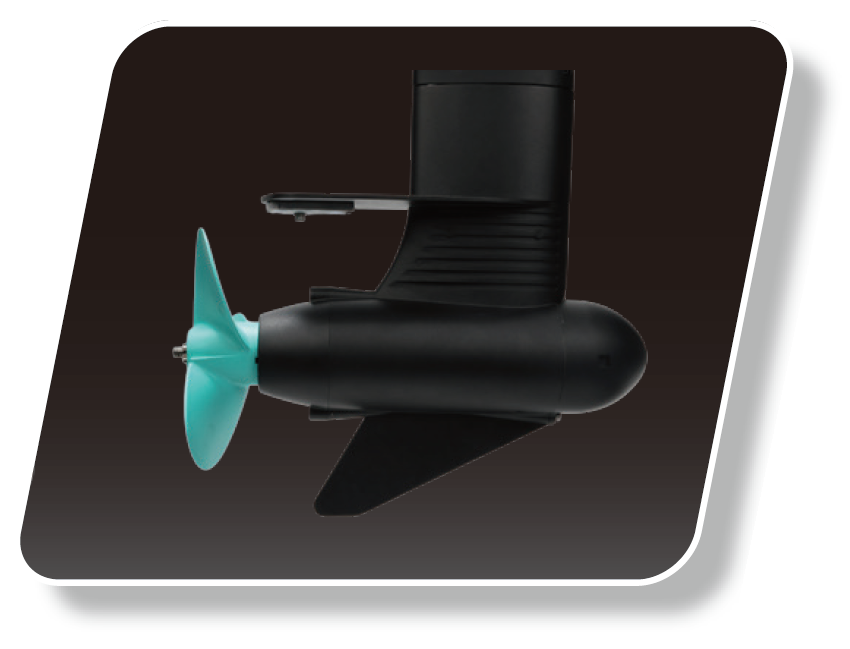

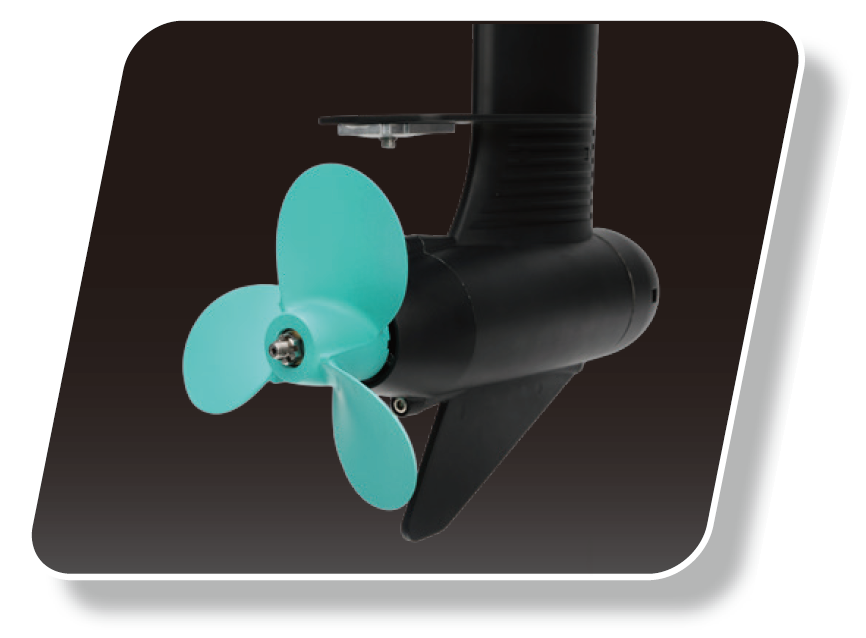

1.High efficiency motor unit


National patented BLDC motor with special anode anti-corrosion protection for underwater part. No oil maintenance required, ultra-quiet operation without scaring fish.

2.Built-in electronic control unit


All-in-one sealed built-in ECU, no external split controller. Block water, salt spray and impact damage to cut down failure rate.

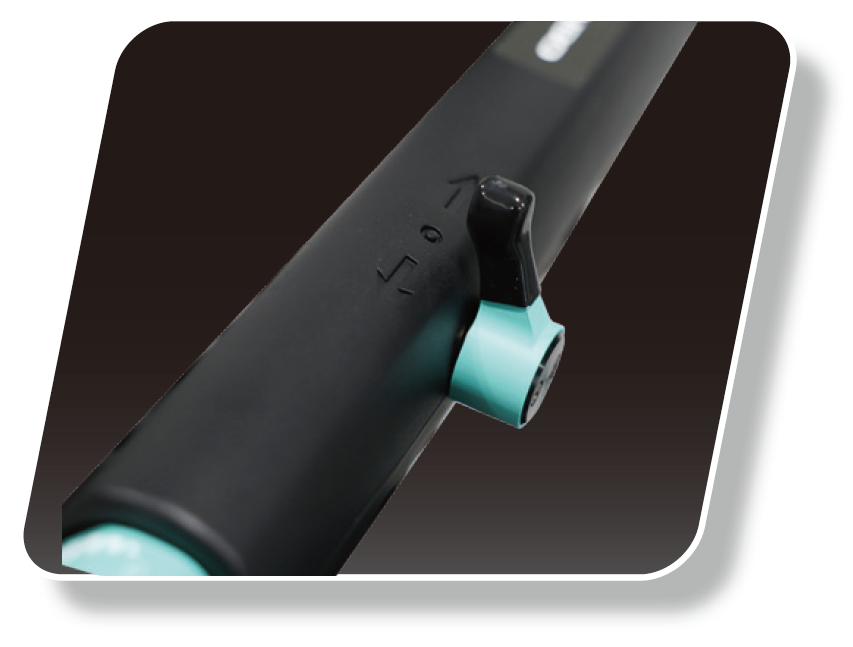

3.Rear Tiller Control Lever（R300/R400/R500）


Integrated rear lever with forward/reverse shift & stepless speed control, lightweight and easy to install for small inflatable boats and single fishing dinghies.

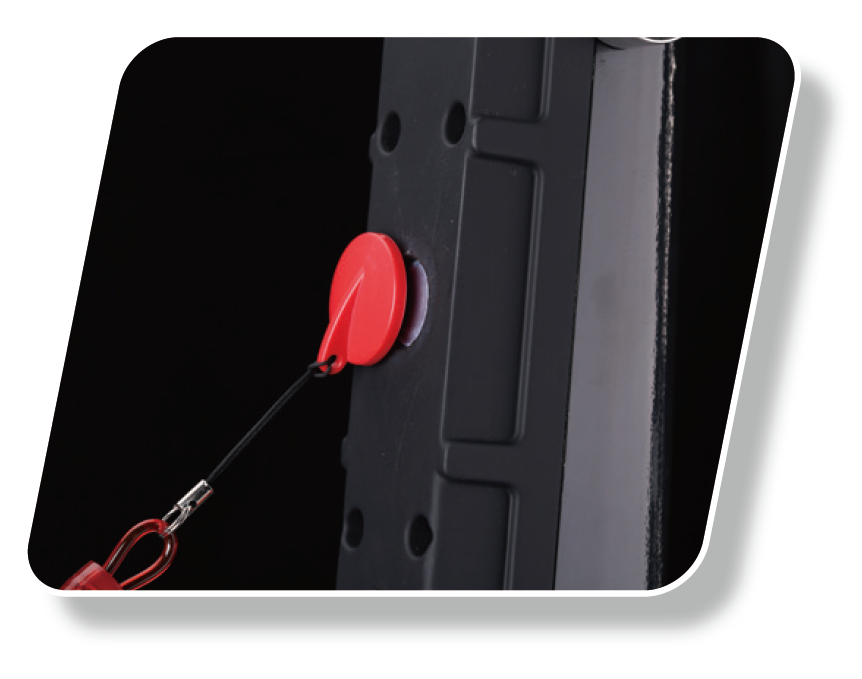

4. Safety Magnetic Kill Key


Standard magnetic safety kill key. Automatically cut power and stop propeller once detached to avoid injury when operator falls overboard.

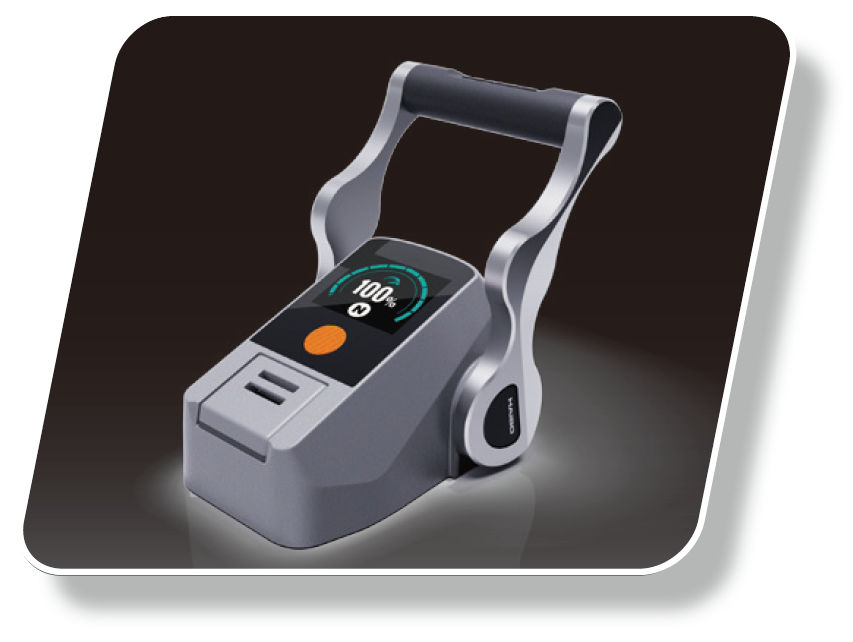

5. OLED Digital Control Shifter（R300s/R400s/R500s）


OLED color screen to display real-time sailing data, smooth intelligent stepless shift. Fully waterproof design for cockpit installation, ideal for medium fishing boats and leisure yachts.

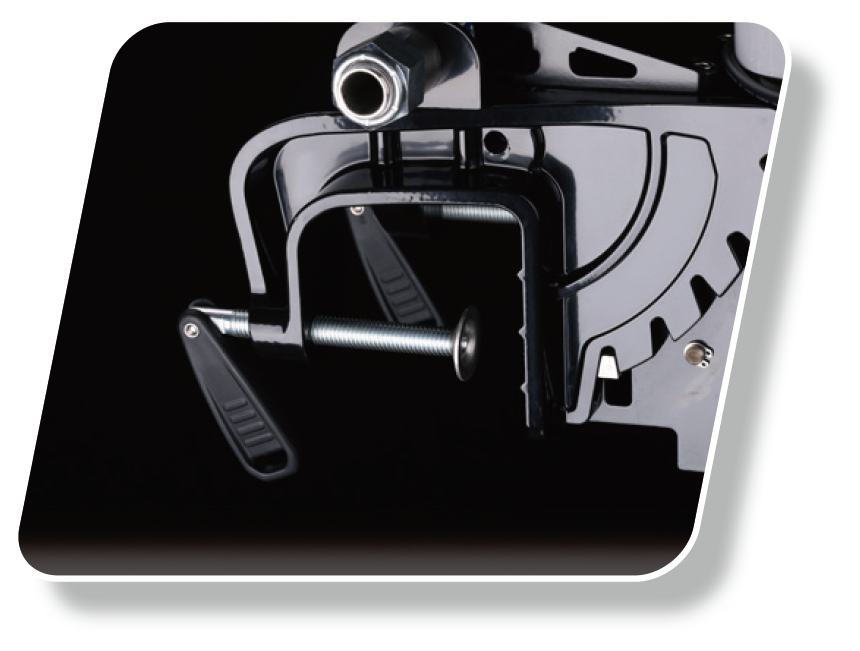

6. Suspension Mount System


Universal mounting base compatible with fuel outboards, shock-absorbing structure. Support twin-motor synchronous control with adjustable submersion depth for all hull types.

2026 New  R Series VS Old  Generation

Comparison Item Old  R SeriesNew  R Series  Benefit
Controller Structure Split external controller Built-in integrated ECU ultra-quiet, Less wiring faults，easier maintenance
System Voltage Mixed 48V & 60V Full unified 48V Only one type of battery needed, lower cost
Max Equivalent HP Top model 11HP Top model 13HPStronger pushing force for heavy boats
Thrust Performance Standard efficiency +17% thrust on 4kW Top model Faster speed, less power consumption
Waterproof StructureSemi-sealed body Full sealed anti-corrosion housing longer service life
Shift System(Control box) Rough mechanical shift Digital smooth stepless shift with OLEDEasy to operate for beginners, real-time data check

Application Scenarios

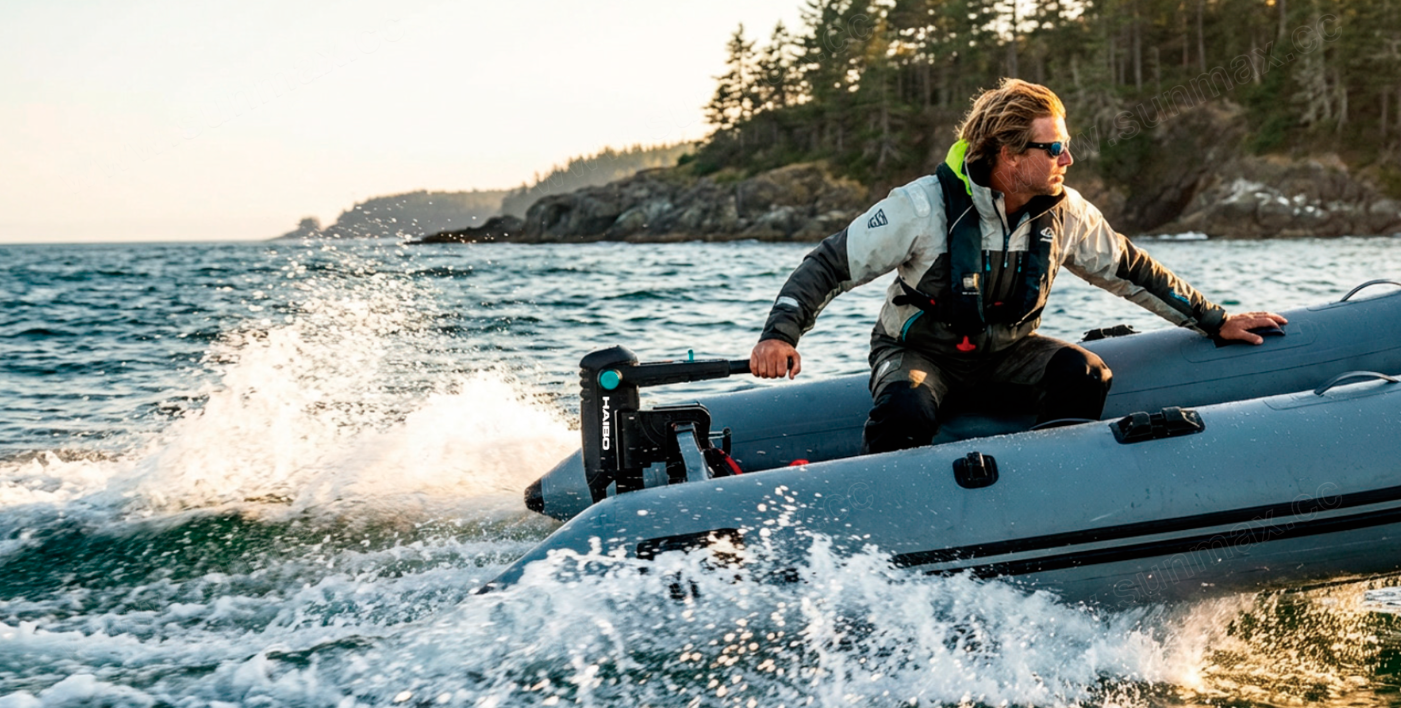

Inflatable fishing boats,  small leisure yachts, aquaculture workboats, inland lake & coastal fishing vessels, twin-engine sightseeing boats

FAQ

  1. Q1: Can it work in seawater?
  2. Yes, full anti-corrosion sealed housing with anode protection. Rinse with fresh water after saltwater use to extend service life.
  3. Q2: What battery is suitable?
  4. 48V marine lithium battery is recommended.
  5. Q3: Difference between tiller and control box models?
  6. Tiller (R300/R400/R500) is direct rear handle control for small boats; models ending with S are front control box versions with OLED digital shifter for medium yachts.
  7. Q4: Does the motor need regular maintenance?
  8. It adopts maintenance-free brushless unit, only simple cleaning after use. No oil change or lubrication needed.
  9. Q5: What is the biggest upgrade compared with the old R series?
  10. Integrated built-in ECU, full 48V unified platform, 17% thrust boost, max equivalent power upgraded to 13HP, full sealed anti-corrosion structure with anode protection, OLED digital gear shifter and dual-motor synchronous suspension bracket.

Product Picture

NEW R.gif
